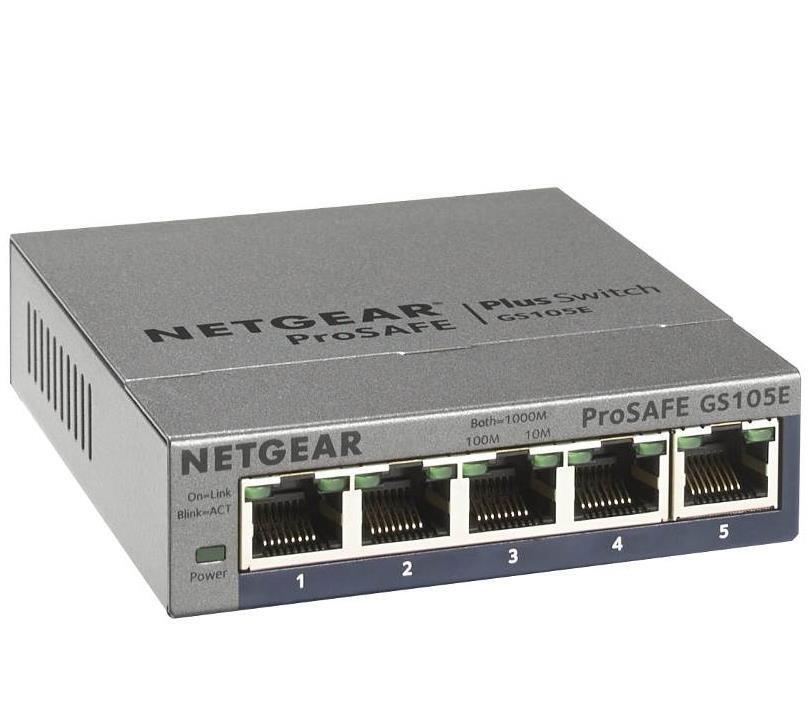

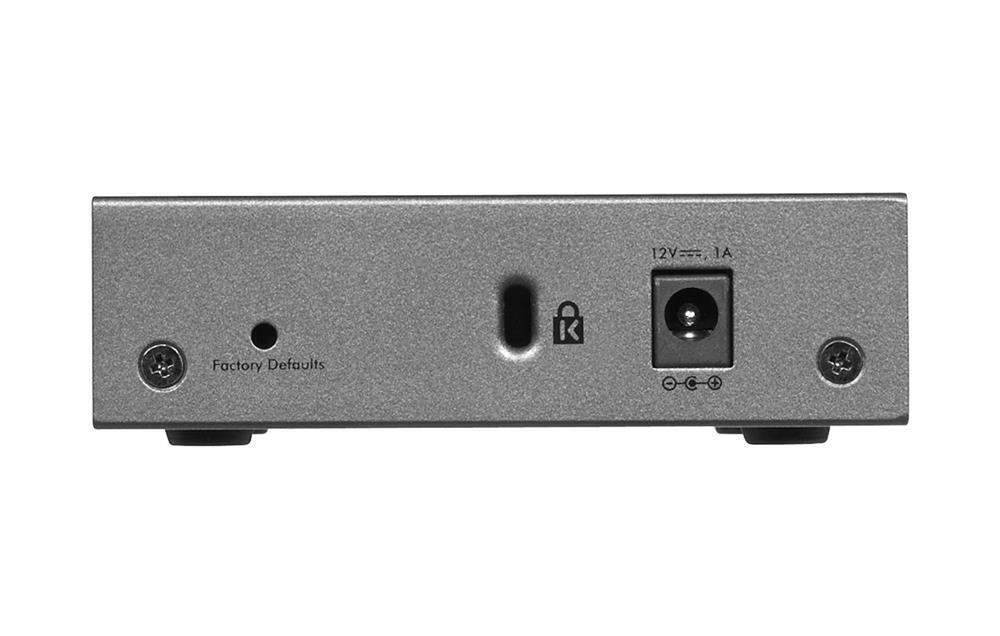

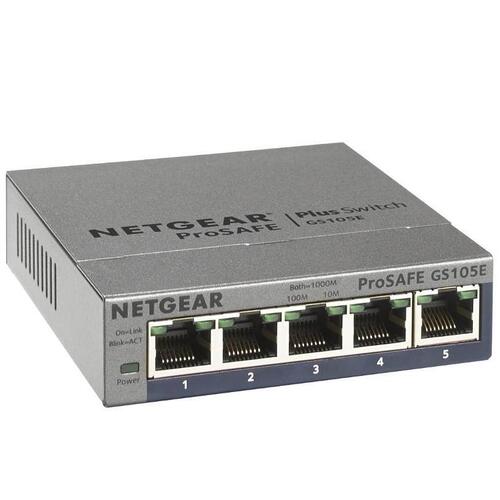

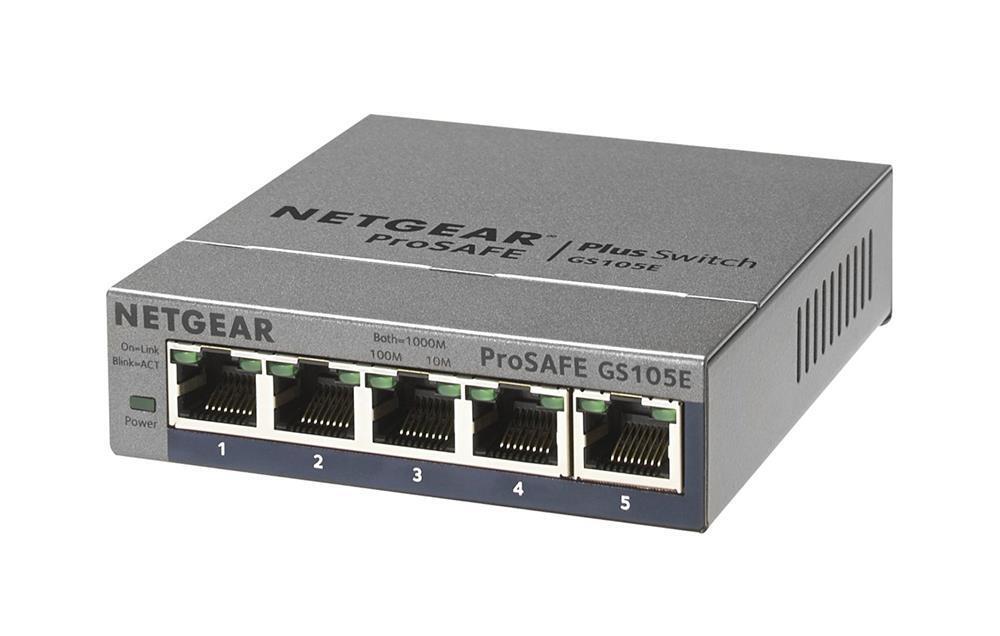

ProSafe Plus 5-port Gigabit Ethernet Switch

Today’s growing businesses demand and rely more on their network to carry out mission-critical business activities.
Companies are putting more network traffic and applications such as VoIP phones and IP cameras on their Ethernet infrastructure. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. However, companies do not necessarily have more money or advanced training to deal with complex managed switches.

NETGEAR ProSAFE® Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), rate limiting and traffic monitoring. NETGEAR ProSAFE® Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.

Brand Name: Netgear
Ethernet Technology: Gigabit Ethernet
Form Factor: Desktop
  Wall Mountable
Layer Supported:
Manageable: Yes
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
PoE (RJ-45) Port: No
Port/Expansion Slot Details: Gigabit Ethernet
Power Source: AC Adapter
Product Family: ProSafe Plus
Product Type: Ethernet Switch
Stack Port: No
Total Number of Network Ports:
General Information
Brand Name: Netgear
Manufacturer Part Number: GS105E-200AUS
Manufacturer Website Address: http://www.netgear.com.au
Manufacturer: Netgear, Inc
Product Line: ProSafe Plus
Product Model: GS105Ev2
Product Name: ProSafe Plus GS105Ev2 Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Bypass: No
LRE Port: No
Management Port: No
Modular: No
Number of Network (RJ-45) Ports:
Port/Expansion Slot Details: 5 x Gigabit Ethernet Network
  Gigabit Ethernet
Stack Port: No
Token Ring Port: No
Total Number of Network Ports:
USB: No
Uplink Port: No
Management & Protocols
Manageable: Yes
Management: Web Based Managment
Media & Performance
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
Twisted Pair Cable Standard: Category 5
Miscellaneous
Certifications & Standards: IEEE Standards:

802.3i
802.3u
802.3ab
802.3x
802.1p

Safety Agency Approvals:

UL listed (UL 1950)/CUL
CB

Electromagnetic Compliance:

CE mark (commercial)
FCC Part 15 Class B
EN 55022 (CISPR 22)Class B
VCCI Class B
C-Tick

Package Contents: ProSafe Plus GS105Ev2 Ethernet Switch
Power Adapter
Rack-Mounting Kit
Quick Install Guide
Resource CD with PC Utility Software

Network & Communication
Layer Supported:
Physical Characteristics
Depth: 2387.6 mm
Form Factor: Desktop
  Wall Mountable
Height: 660.4 mm
Weight (Approximate): 270 g
Width: 2565.4 mm
Power Description
Input Voltage: 12 V DC
PoE (RJ-45) Port: No
Power Source: AC Adapter
Warranty
Limited Warranty: Lifetime
SKU GS105E-200AUS
Brand NETGEAR

Traffic Management

  • Auto Negotiation of speed and duplex modes
  • 802.3x Flow Control
  • DHCP Client
  • Dynamic MAC address management
  • IEEE 802.1Q-based or port-based VLAN
  • QoS based on WRR, strict priority, or both
  • Port-based and IEEE 802.1p-based QoS
  • QoS based on ToS (Type-of-Service)
  • DSCP Support (GS105E and GS105PE only)
  • Rate Limiting
  • Link Aggregation / Port Trunking (Static LAGs on 16 ports and 24 ports, Static LAGs and LACP on 48 ports)

Multicast Efficiency

  • IGMP snooping, v1, v2 and v3
  • Blocking of unknown multicast traffic
  • Act as static multicast router port

Reliability, Performance and Troubleshooting

  • Port mirroring both on ingress and egress traffic
  • Jumbo frame support
  • Broadcast Storm control
  • Cable diagnostics
  • Loop Detection
  • DoS Prevention
  • Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
  • Power savings with short cable detection and auto power-down when ports are in idle mode

Switch Management

  • Advanced configuration and management using web browser-based GUI
  • Manage or deploy multiple switches using ProSAFE Plus Utility (requires Windows PC)
  • Firmware upgrade thru ProSAFE Plus Utility (TFTP)
  • Configuration upload (to Server)
  • System password protection

NETGEAR Warranty

  • This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).

Lifetime Manufacturer Warranty
