Output

• Output power capacity
  480Watts / 950VA
• Max Configurable Power (Watts)
  480Watts / 950VA
• Nominal Output Voltage
  230V
• Output Frequency (sync to mains)
  50/60 Hz +/-1 Hz
• Output Frequency (not synced)
  50/60 Hz +/-1 Hz
• Topology
  Line Interactive
• Waveform type
  Stepped approximation to a sinewave

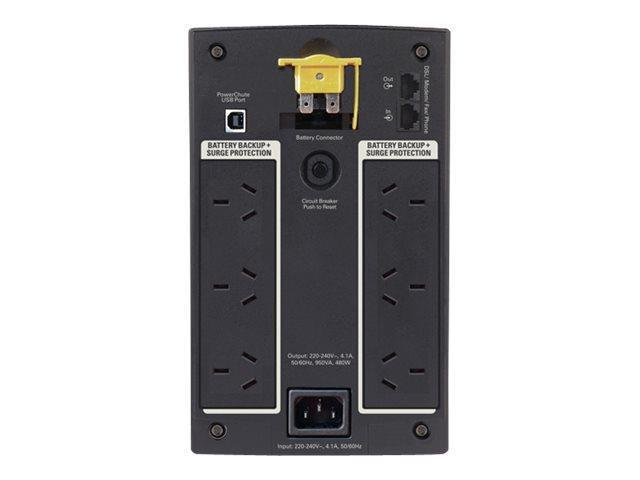

• Output Connections
  (6) Australian (Battery Backup)
• Transfer Time
  8ms typical : 10 ms maximum

Input

• Nominal Input Voltage
  230V
• Input frequency
  50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections
  Australian/Chinese
• Cord Length
  1.22meters
• Input voltage range for main operations
  150 - 280 V
• Number of Power Cords
  1
• Maximum Input Current
  4.0A
• Input Power Factor at Full Load
  0.51

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules
  1
• Typical recharge time
  8hour(s)
• Expected Battery Life (years)
  2 - 5
• Battery Volt-Amp-Hour Capacity
  76
• Runtime
  View Runtime Graph
  View Runtime Chart
• Efficiency
  View Efficiency Graph

Communications & Management

• Interface Port(s)
  USB
• Control panel
  LED status display with On Line : On Battery : Replace Battery and Overload indicators
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating
  273Joules
• Data Line Protection
  RJ-11 Modem/Fax protection

Physical

• Maximum Height
  215mm , 21.5cm
• Maximum Width
  130mm , 13.0cm
• Maximum Depth
  336mm , 33.6cm
• Net Weight
  8.0kg
• Shipping weight
  8.99kg
• Shipping Height
  295mm , 29.5cm
• Shipping Width
  245mm , 24.5cm
• Shipping Depth
  440mm , 44.0cm
• Color
  Black

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95% no %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -15 - 40 °C
• Storage Relative Humidity
  0 - 95% no %
• Storage Elevation
  0-9000meters
• Audible noise at 1 meter from surface of unit
  45.0dBA

Conformance

• Approvals
  A-tick, C-tick, CE, IEC 62040-1-1, RCM, Telepermit
• Standard warranty
  2 years repair or replace

Sustainable Offer Status

• RoHS
  Compliant
• REACH
  REACH: Contains No SVHCs

BX950U-AZFeatures

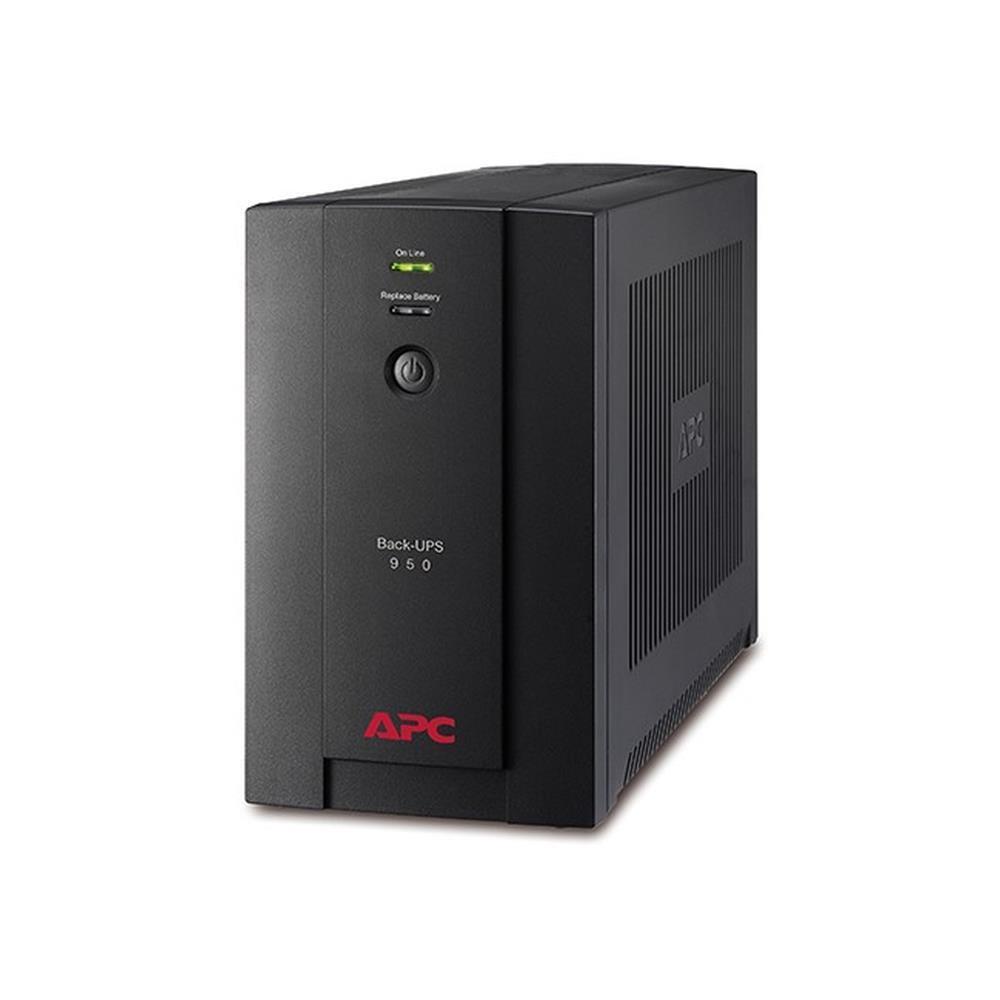

APC Back-UPS 950VA, 230V, AVR, Australian Sockets

Battery Backup & Surge Protector for Electronics and Computers

Includes : USB cable , User Manual

• Automatic restart of loads after UPS shutdown
  Automatically starts up the connected equipment upon the return of utility power.
• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Automatic Voltage Regulation (AVR)
  Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
• Resettable circuit breaker
  Easy recovery from overloads; no need to replace a fuse.
• Telephone dataline surge protection
  Provides protection of connected equipment from power surges traveling on telephone lines.
• USB connection
  Use your PC to access additional power protection and management features for your UPS via a USB Port.

Back-UPSFeatures & Benefits

Manageability

• LED status display
  Quickly understand unit and power status with visual indicators.
• Audible alarms
  Provides notification of changing utility power and UPS power conditions

Safety

• Safety-agency approved
  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Protection

• Battery and surge protected outlets
  Back up and protect your hardware and data during power outages, surges and spikes.
• Surge only outlets
  Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Availability

• Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Battery failure notification
  Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Marketing Features

• Battery-protected and surge-only outlets
  Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
